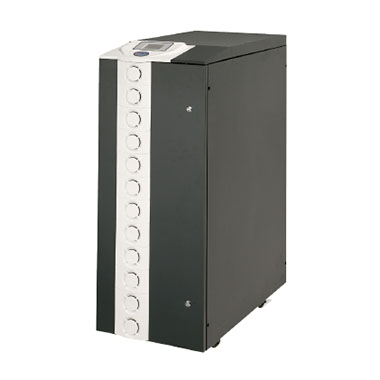

Pyramid DSP Premium Series

On-Line “Double Conversion” Technology
DSP Controlled IGBT Rectifier UPS
3 phase in / 3phase out 10 to 400 kVA

-High Output Power Factor : 0,9
-Graphical Touch Screen Front Display Panel
-IGBT Rectifier
-Real Digital Signal Processor (DSP) controlled transformerless design
-Input Power Factor Correction PFC( >0,99 )
-Low Total Harmonic Distortion Level ( THDi ≤ 4% )
-High Efficiency ( up to 94% )
-Wide Input Voltage Range
-Generator Compatible Operation
-Evolution and redundancy guaranteed by on site Modular Parallel Systems
-Intelligent battery management system extends the lifetime of batteries
-Static and Manual Bypass
-EPO (Emergency Power Off)
-Communication with computers and network systems with SNMP availability
-Expandable battery blocks
-Low installation and operating costs
-Different voltage applications with refer to country mains characteristic
